Mold Surface Treatment Technology: Nitriding, Carburizing, and PVD Coatings

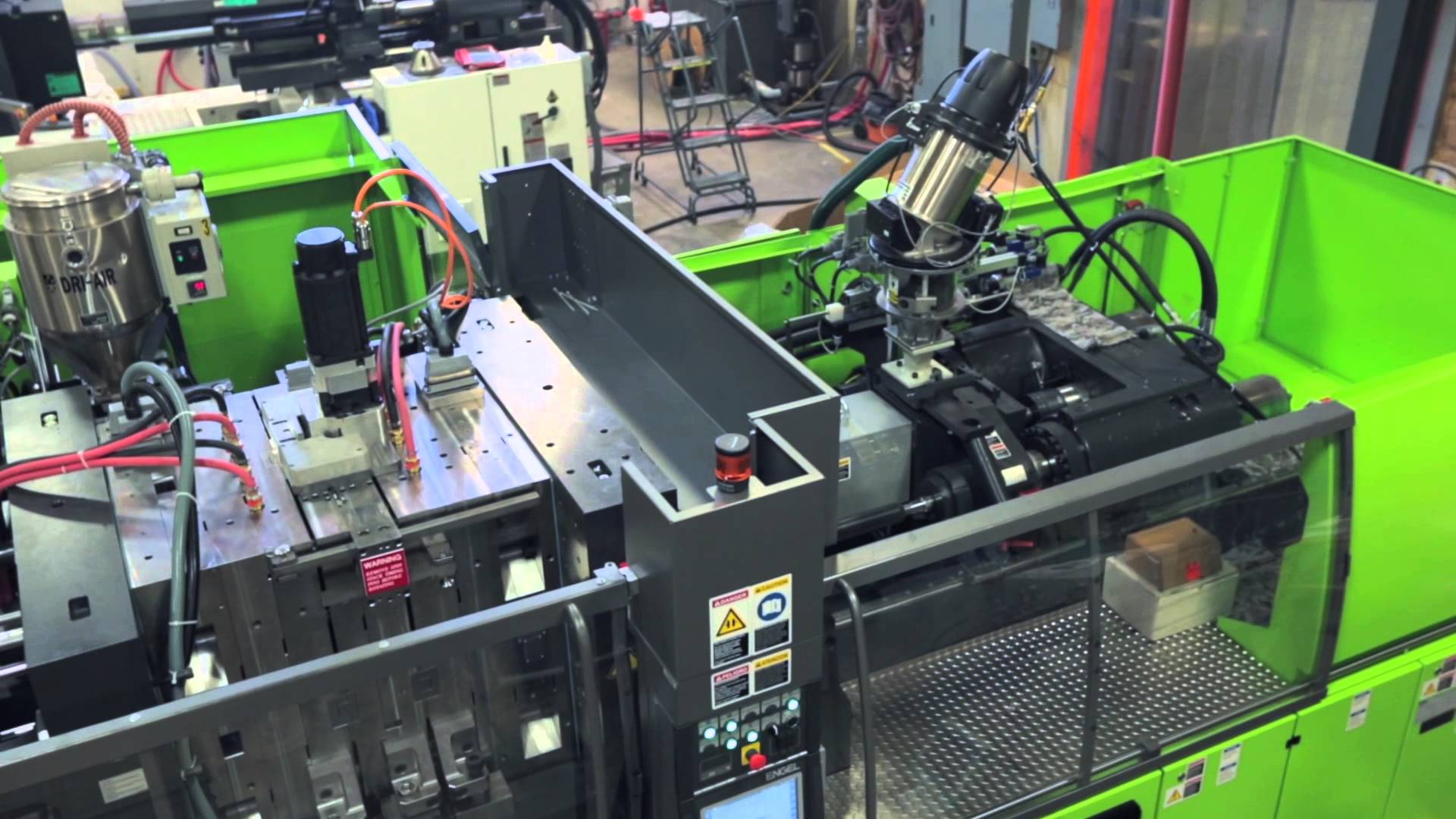

While core steel strength and toughness prevent catastrophic die breakage, the working surface properties of a plastic mold—wear resistance, corrosion resistance, friction coefficient, and thermal fatigue strength—determine cavity longevity and part release performance.
- 4 Core Surface Properties: Wear resistance (against glass/mineral fillers), corrosion resistance (against PVC/flame-retardant off-gassing), low friction coefficient, and fatigue strength.
- 3 Primary Surface Treatments: Nitriding (gas, ion, liquid—low temperature, minimal distortion), carburizing + quenching (high surface hardness on tough low-carbon cores), and enhanced CVD/PVD multilayer coatings.
- Pre-Hardened Steel Adoption: Pre-hardened mold steel usage grew from 30% in the 1980s to over 60% today in industrial mold making, eliminating post-machining heat-treatment distortion.
Relying solely on expensive bulk alloy upgrades to resist abrasive glass fibers or corrosive polymer gases is uneconomical. Applying targeted surface treatment technology alters the morphology, chemical composition, microstructure, and residual stress state of the top few microns of steel through surface coating, diffusion modification, or composite processing.
Engineers classify mold surface treatments into four categories: chemical, physical, physico-chemical, and mechanical methods. In production plastic mold manufacturing, nitriding, carburizing, CVD/PVD coatings, and pre-hardened steel metallurgy deliver the highest return on tooling investment:
| Treatment / Metallurgy | Process Mechanism | Core Tooling Advantage | Best Mold Applications |
|---|---|---|---|
| Nitriding (Gas, Ion, Liquid) | Diffuses nitrogen into steel surface at low temperature without intense quenching | High surface hardness with near-zero dimensional distortion; pairs well with quenched cores | Sliding cores, ejector sleeves, glass-filled nylon cavities |
| Carburizing | Diffuses carbon into low-carbon alloy steel followed by quenching | Combines a wear-resistant outer case with a high-toughness shock-absorbing core at lower steel cost | Large structural mold bases, high-load cam slides, guide pillars |
| CVD & PVD Coatings | Deposits multilayer ceramic/metallic thin films (since the 1980s) | Ultra-low friction and extreme abrasion/corrosion resistance | Million-shot precision molds, optical cores, corrosive resin tooling |
| Pre-Hardened Steel | Mill-hardened alloy steel supplied at working hardness (now >60% market share) | Eliminates post-machining heat treatment, cutting lead time and thermal warpage | Standard cavity/core plates (P20, 718, NAK80) |
Nitriding
Mold nitriding encompasses gas nitriding, plasma (ion) nitriding, and liquid salt-bath nitriding. Each variant can be tailored to specific tool steel grades and complex cavity geometries.
Nitriding forms an ultra-hard, anti-galling nitride compound layer that coordinates directly with the prior quenching and tempering cycle of the mold steel. Because nitriding runs at relatively low temperatures and requires no rapid quenching cooldown, dimensional distortion of precision cavities is minimal.
Carburizing
Carburizing diffuses carbon into the surface layer of a tough, low-carbon steel blank before quenching and tempering. This dual-property approach gives the working cavity face high wear resistance and contact strength while preserving ductile impact toughness inside the core.
In toolroom economics, carburizing and quenching a lower-grade structural alloy can often substitute for costly through-hardening tool steels on large wear plates and cam blocks.
CVD and PVD

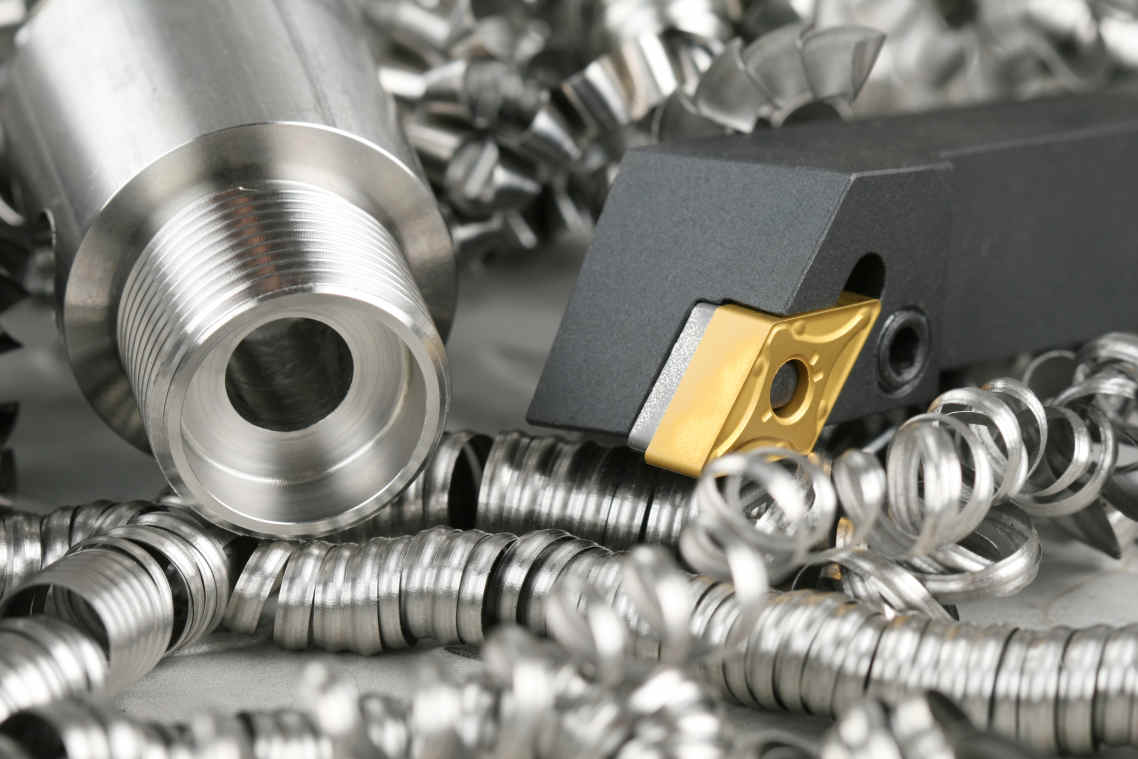

Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) technologies apply dense, high-adhesion thin films—such as TiN, CrN, or DLC—onto precision cutting tools, gauges, and injection mold inserts.
Multilayer CVD coatings have been applied to plastic molds since the 1980s. Because vacuum coating furnaces require specialized capital equipment, CVD and PVD treatments are primarily specified for high-cavitation, long-life precision molds or high-wear gate inserts.
Pre-Hardening
Historically, toolmakers rough-machined annealed steel, sent the blocks out for heat treatment, and ground away thermal distortion. When pre-hardened steel was first proposed in the 1970s, limited CNC spindle rigidity and cutting tool grades restricted its adoption.
As rigid high-speed machining centers and coated carbide tooling advanced, pre-hardened mold steel adoption rose from 30% in the 1980s to over 60% across developed mold-making markets (with Chinese toolmakers adopting imported and domestic pre-hardened grades heavily from the mid-1990s onward).
Supplied directly from the steel mill at final working hardness, pre-hardened steel eliminates post-machining quench distortion, shortens mold manufacturing lead times, and preserves tight CNC tolerances.
