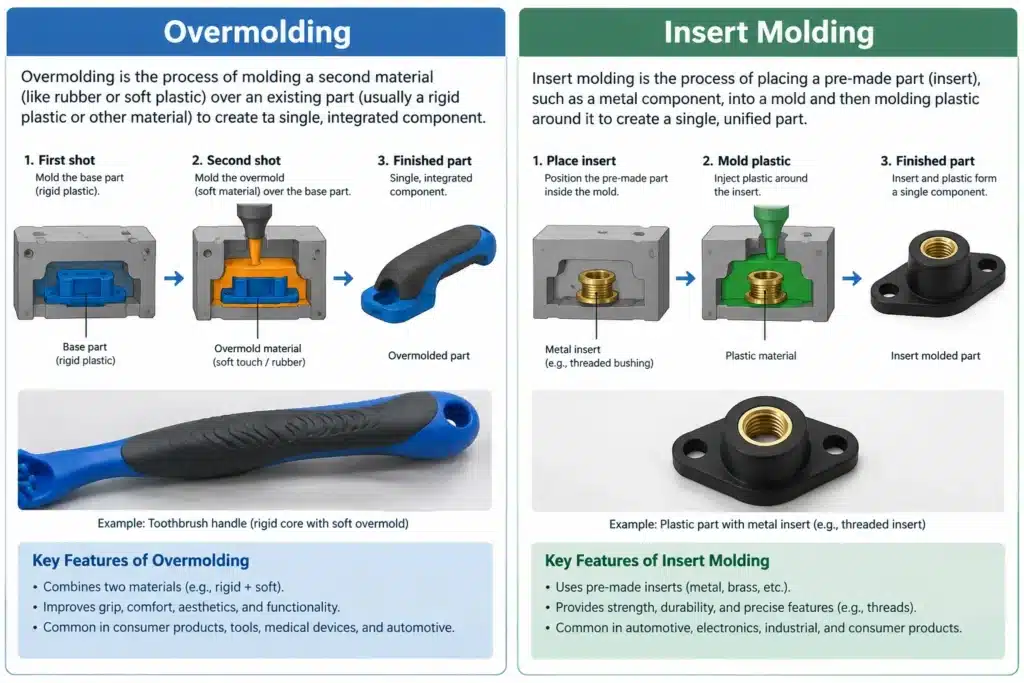

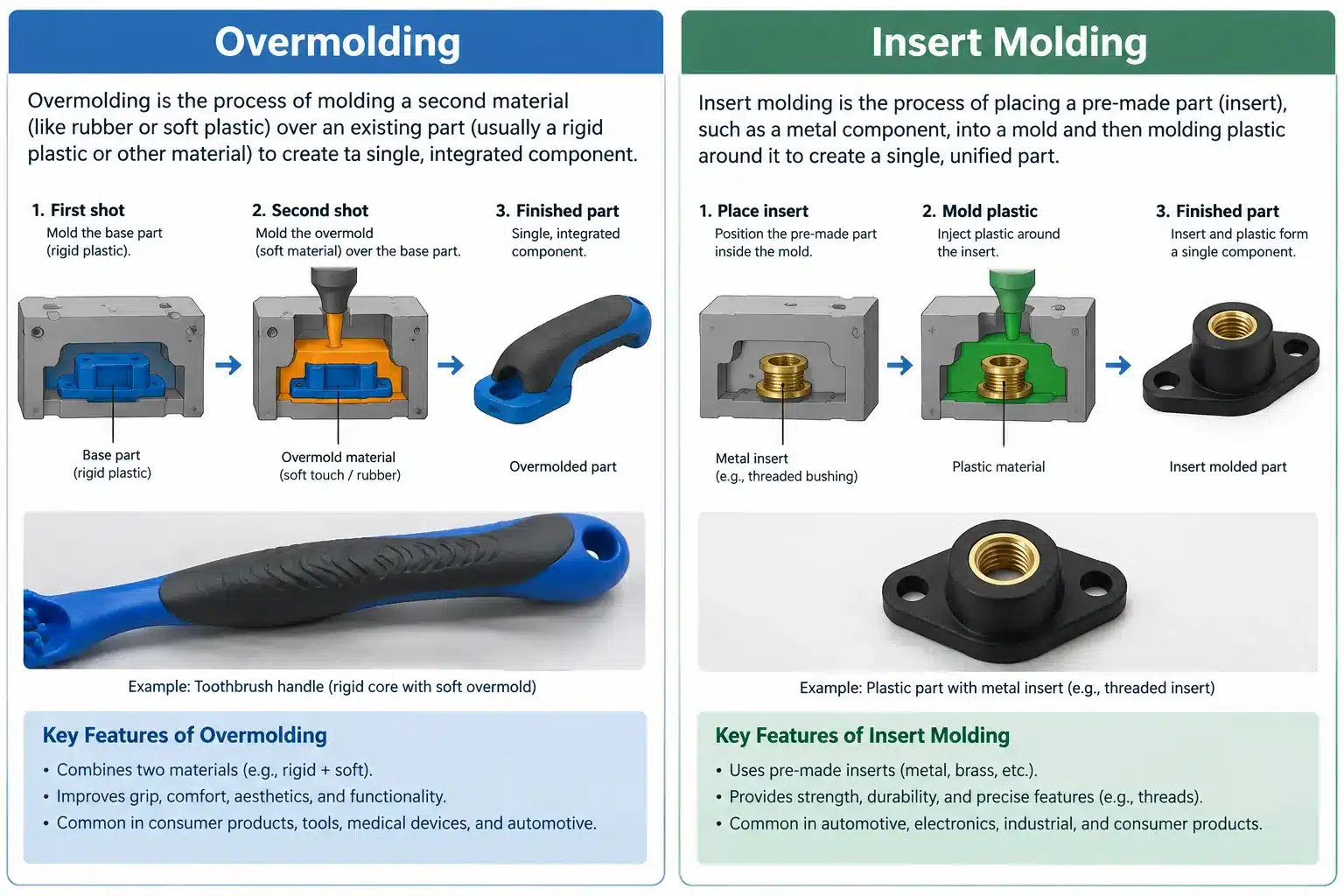

What Are Overmolding and Insert Molding?

You have experienced overmolding in use when you hold a toothbrush with its soft grip or any tool with a rubber handle. Manufacturers combine two different materials through an overmolding process to create single products. The manufacturing process combines a rigid plastic material with a softer elastic component which could be rubber or silicone.

The process of insert molding functions differently than its counterpart overmolding. The process requires operators to add ready-made components such as metal screws or circuit boards into the mold. A single plastic piece emerges by injecting plastic material around the base part. The integration of materials through this method occurs without requiring additional assembly procedures.

The manufacturing industry widely uses these two production methods. Products owns extended durability and good performance through this process. But how do they work? Let’s take a closer look.

How Does Overmolding Work?

The overmolding process requires completion of two distinct operational phases. The base section begins the production process by using rigid plastic materials. The production sequence starts with base part manufacturing followed by application of softer material over it. The bonding of these two materials occurs at this processing stage.

The procedure works in a similar way to building a cake. The base part functions as the cake component while the second material serves as the frosting element. The combination of cake and frosting creates something superior than the individual components when the frosting adheres to the cake base.

Two approaches exist for performing the overmolding process:

• With two-shot molding equipment, a machine uses one process to simultaneously inject multiple materials. It’s fast and precise.
• The base part production follows first, then the mold receives the base part for the overmolding process. The production process takes extra time yet it is effective for smaller production quantities.

The overmolding process enables production of power tool grips, medical devices, and phone cases. Better performance emerges from the combination of materials in a single unit.

How Does Insert Molding Work?

The process of insert molding requires a previously manufactured component such as metal rods or threaded inserts. The mold receives the part before plastic injection takes place across it. The plastic material solidifies while the two components remain fused together.

The result? Manufacturers produce a united component through this technique which unites metal robustness with plastic adaptability. The insert molding tech creates a system where metal acts as the internal support ,while plastic provides external flexibility.

The production method of insert molding creates final products which include electrical components as well as medical devices and automotive parts. The production technique not only shortens manufacturing times ,but also enhances product lifetime.

What Are the Benefits?

These two manufacturing techniques deliver many advantages to their users. Here are a few:

• Products achieve longer lifespans when materials are combined because the strength increases.
• Overmolding enables products to get non-slip grips and waterproof seals.
• The processes lead to cost savings because they eliminate the need for additional assembly operations, thus reducing expenses and time requirements.
• The process enables users to produce intricate shapes and join multiple materials within a solitary product.
• And let’s not forget aesthetics. Overmolding enhances product aesthetics and feel, thus appealing to consumer goods markets.

When Should You Use Overmolding?

Using overmolding proves the best choice to unite different materials that enhance product performance. A hand tool becomes more comfortable and easier to handle through the addition of a soft rubber grip. Medical device designs benefit from overmolding since it generates waterproof seals that shield delicate elements.

Overmolding serves as an excellent solution to incorporate branding elements. The combination of various color schemes with textural elements enables your products to become more noticeable in the market.

What Are the Situations That Require Insert Molding?

The insert molding technique provides the best solution for uniting incompatible materials during the manufacturing process. You would need to place metal pins inside plastic housings when creating electrical connectors. Insert molding enables joint fabrication of materials while eliminating product assembly requirements.

This method strengthens plastic components effectively. A product becomes lightweight yet strong through the implementation of metal inserts.

The Main Distinction Between These Techniques Exists

The two manufacturing techniques known as overmolding and insert molding demonstrate comparable features when viewed superficially. The two processes share a common foundation since they require uniting different materials. Overmolding stands apart since it requires the second component to envelop a base part during the molding process. The pre-made part receives placement in a mold before the plastic injection takes place in insert molding.

The process of overmolding resembles frosted cakes whereas insert molding functions similarly to placing fillings in pies. They complement each other although they function in separate ways.

Are There Any Challenges?

Overmolding and insert molding face obstacles in their manufacturing execution like other production techniques. To achieve successful overmolding, the main challenge is forming a solid connection between different materials. The product will fail when the materials fail to bond correctly.

The main issue with insert molding occurs when maintaining stability of the inserted component during the production cycle. A moving insert can result in product failure that does not satisfy quality requirements.

Working with an experienced supplier becomes essential because they provide solutions to potential manufacturing challenges. Experienced suppliers will manage these difficulties effectively to produce high-quality outcomes.

The combination of overmolding and insert molding creates powerful production methods that generate enduring functional products with excellent aesthetics. The processes are suitable for medical device, automotive part, and consumer good designs to help you reach your objectives.

A reliable supplier stands as the key factor for achieving success. The supplier team will support you in material selection and design optimization as well as process manufacturing efficiency. A collaborative relationship with the right team will enable limitless potential.
